Thermostat Wall Plate: How to Pick a Cover Plate

On this page (8 sections)

1. How do you choose a thermostat wall plate?
2. Which wall marks can a cover plate hide?
3. Does the plate need to match the thermostat brand?
4. Which thermostat wall plates fit Nest and Sensi models?
5. How can you check whether a thermostat wall plate fits?
6. How do you set up and care for a thermostat wall plate?
7. What mistakes should you avoid when buying a thermostat wall plate?
8. Which thermostat cover plate should you choose?

Choose a thermostat wall plate that fits your exact thermostat model and covers the wall marks or holes you need to hide. Check its size, mounting needs, and junction box requirements before you install it.

A cover plate can make a thermostat replacement look neater, but plates are not universal. Start with the model number on your thermostat, then compare compatibility and dimensions with the wall area you need to cover.

How do you choose a thermostat wall plate?

Choose by thermostat compatibility, wall coverage, and mounting setup. A plate that hides the marks but does not fit the thermostat can create a poor fit or prevent installation.

Use this checklist before buying:

1. Find your thermostat's complete model number.
2. Check that the plate names that model or model family as compatible.
3. Measure the marks, holes, or damage you want to cover.
4. Compare those measurements with the plate's wall dimensions.
5. Check whether your installation needs a junction box adapter or specific mounting hardware.

A thermostat wall plate is a cosmetic cover and mounting accessory. It does not repair loose drywall, correct unsafe wiring, or make an incompatible thermostat fit.

If you're replacing the thermostat too, first identify what type of thermostat you have. For the larger installation steps, see our guide to how to change a thermostat.

Which wall marks can a cover plate hide?

A cover plate can hide surface marks, paint differences, and small holes within its footprint. It cannot fix loose drywall, a large opening, or wiring that needs professional attention.

Measure the widest and tallest parts of the area you want to cover. Leave a little room for uneven edges, and check that the finished plate will not overlap trim, switches, or other fixtures.

The Honeywell Home THP2400WH is a good fit for compatible Honeywell thermostats when its 4.6 in by 6.1 in footprint covers the marks. Its kit includes a cover plate, electrical box adapter, and mounting screws.

This plate works with Honeywell Home X1N, X2P, X2S, X7S, and X8S models. Choose it if you have one of those thermostats and want the included adapter; skip it if your thermostat is outside that model list or the plate is too small for the damaged area.

Does the plate need to match the thermostat brand?

Match the plate to the exact thermostat model first. A plate from the same brand may still fit only one model or exclude other models in that brand's range.

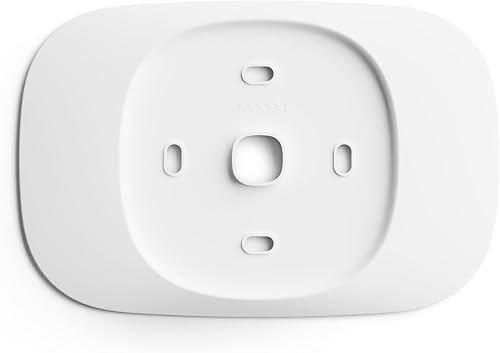

The ecobee Trim Plate is designed for Smart Thermostat Essential only, and it does not work with other ecobee Smart Thermostat models. It is a sensible choice when you have the Essential and need a trim plate for the wall finish or junction box setup.

The plate is 6.6 in wide and 4.4 in high. ecobee says its trim kit is required when the Essential attaches to a junction box, so follow the thermostat's installation guide for your setup.

Choose another option if you own a different ecobee model. The similar brand name does not make the Essential trim plate a universal ecobee accessory.

For more installation help, browse our thermostat fit and installation guide. If you are choosing a new thermostat as well, compare thermostats for your home.

Which thermostat wall plates fit Nest and Sensi models?

Nest and Sensi plates have specific model limits, so compare the full model number before buying. Similar names do not mean a plate fits every thermostat in the family.

The Petrichor plate is made for the 2020 Google Nest Thermostat. Its compatible model identifiers include G4CVZ, GA01334-US, GA02082-US, GA02081-US, and GA02083-US.

Choose it when that Nest model is installed and the plate's footprint covers the wall imperfections. Skip it for another Nest generation or model unless compatibility is confirmed.

The Sensi Thermostat Wall Plate fits Sensi Wi-Fi Thermostat models ST55 and 1F87U-42WF, plus specified White-Rodgers 80 Series models. It can be used with or without a horizontal junction box.

Do not choose the Sensi plate for Sensi Touch ST75 or ST75W, Sensi Touch 2 ST76 or ST76W, or Sensi Lite ST25 or ST25W. If you have one of those models, find a plate specifically made for it.

How can you check whether a thermostat wall plate fits?

Compare the thermostat model number and the plate dimensions before installation. Check the cover's outside size as well as its mounting instructions.

A paper outline can help you see whether the plate covers the marks without overlapping nearby features. Hold the outline where the thermostat will sit and check that it leaves space for the thermostat's mounting points.

For a junction box installation, confirm whether the plate includes an adapter or is required for that thermostat. A plate that covers the opening is not automatically a secure mount, so follow the product and thermostat instructions.

If the wall damage extends beyond the plate's edges, decide whether you want to repair and repaint the area instead. Buying a larger plate that does not fit your thermostat will not solve the problem.

How do you set up and care for a thermostat wall plate?

Prepare the wall and confirm the fit before fastening the plate. Check the exact thermostat and accessory instructions for the mounting steps and any electrical precautions.

Before installation, compare the plate with the thermostat and wall, identify the screw locations, and make sure the cover will hide the marks you care about. The ecobee Essential trim plate includes screws and drywall plugs, while the Honeywell kit includes an electrical box adapter and mounting screws.

Keep the plate clean with a soft, dry cloth unless its instructions allow another method. Avoid harsh cleaners or abrasive pads that could mark the finish, and do not pull on the plate when cleaning around the thermostat.

Stop if you find damaged wires, uncertain wiring, or an opening that exposes electrical parts. Contact a qualified HVAC technician or electrician if the mounting surface or wiring seems unsafe.

A plate may add a step to thermostat replacement. Our guide to whether a thermostat needs batteries can help you check another installation detail before you begin.

What mistakes should you avoid when buying a thermostat wall plate?

The most common mistake is choosing by appearance or brand instead of model number. A plate can look right and still be incompatible with the thermostat.

Also avoid measuring only the thermostat body. The cover needs to reach past the full area of old paint, holes, or damage, while still fitting the wall and mounting arrangement.

Do not assume every plate handles a junction box. Check whether the accessory includes an adapter, can be used with a box, or is required for the thermostat's box installation.

Finally, do not expect a cover to correct structural or electrical problems. Use it for surface coverage and the mounting role specified by its instructions.

Which thermostat cover plate should you choose?

Choose the Honeywell Home THP2400WH for a compatible X1N, X2P, X2S, X7S, or X8S thermostat when you need its adapter and its size covers the wall marks. Pick the ecobee trim plate only for Smart Thermostat Essential, especially when its instructions call for a trim plate with a junction box.

Choose the Petrichor plate for the 2020 Nest Thermostat if its footprint suits the wall. Choose the Sensi plate for the named Sensi Wi-Fi and White-Rodgers models, and skip it for Touch, Touch 2, and Lite.

If none of these model lists matches your thermostat, search by the full model number and confirm the plate dimensions before ordering. A thermostat wall plate is the right fix when it fits the thermostat and covers the marks; otherwise, repair the wall or find a purpose-made accessory for your model.

Frequently asked questions

Do thermostat wall plates fit every thermostat?

No. Wall plates can be model-specific, so check the exact thermostat model before buying.

The ecobee Trim Plate for Essential is designed for Smart Thermostat Essential only.

The Sensi plate excludes Sensi Touch, Touch 2, and Lite models.

Match both the thermostat and plate instructions.

What does a thermostat wall plate cover?

A wall plate can cover marks, small holes, gaps, or damage left by an older thermostat, depending on its size and shape. Measure the area you need to hide and compare it with the plate dimensions.

It won't repair loose drywall or a damaged wall.

Do I need a wall plate for a thermostat junction box?

It depends on the thermostat and plate. The Honeywell Home kit includes an electrical box adapter. ecobee says its Essential trim kit is required when that thermostat attaches to a junction box.

Check the thermostat and accessory instructions before mounting anything over electrical wiring.

Can I use a wall plate with a thermostat from another brand?

Only if the plate is designed to fit that thermostat model. A similar shape or brand name isn't enough to confirm compatibility.

Check model numbers, mounting arrangement, and exclusions, then follow the installation instructions for both parts.
